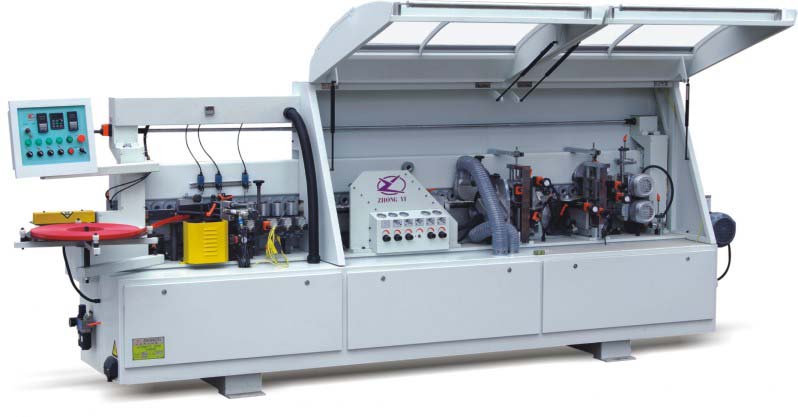

TC-60B 全自動(dòng)封邊機(jī)
Features
1. Stable performance.
2. The glue port can be replaced by an optional EVOK made clean-free PUR system.
3. High edge banding speed up to 20m/Min.
4. Wooden banding belt thickness should be less than 15mm.
5. Including functions: Gluing/Edge feeding/Edge cutting/Ends trimming /Fine finishing/ Scraping/Polishing
Technical Specs
◎Power source: 380V/50Hz/3HP+N
◎Min. panel width: 60mm
◎Min. panel length:100mm
◎Panel thickness: 10-60mm
◎Banding belt thickness: 0.3-12mm
◎Banding belt width: 12-65mm
◎Feeding speed: 10-30m/Min.
◎Air pressure:0.6-0.8Mpa
◎Total power:7KW
◎Machine size:4000x950x1750mm
◎Machine weight:1800kg
